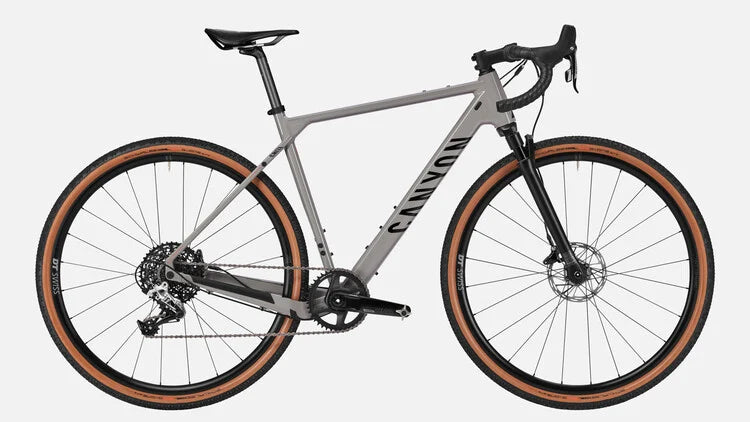

Grizl 7 Suspension

Grizl 7 Suspension

Regular price €212,42 EUR
Regular price €2.499,00 EUR Sale price €212,42 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Size
Quantity

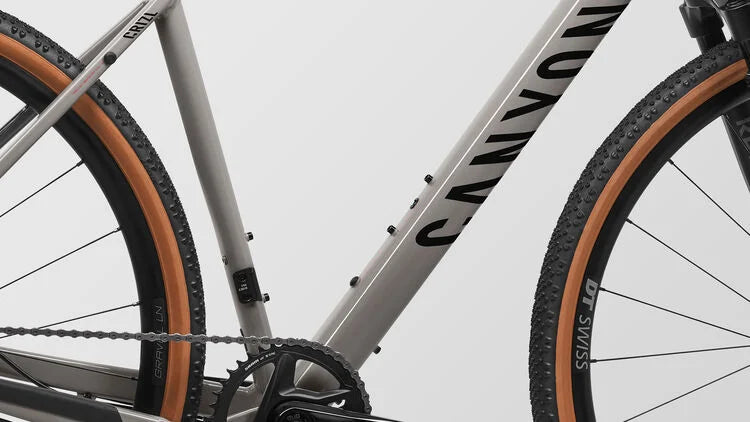

Frame

  • Frame
    • Canyon Grizl AL

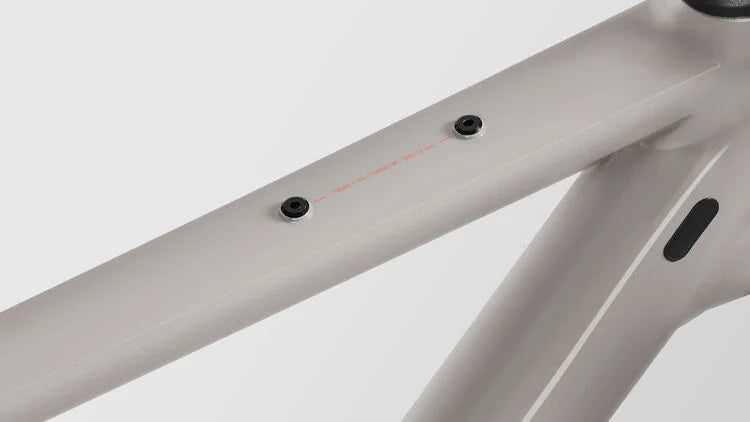

    • Aluminium frame with Gravel Pro geometry, a range of mounting points, and extended wheelbase for extra off-road stability.
    • Axle dimension: 12x142 mm
    • Tyre clearance: 50 mm
    • Material: Aluminium (AL)
    • Weight: 3.64 lbs

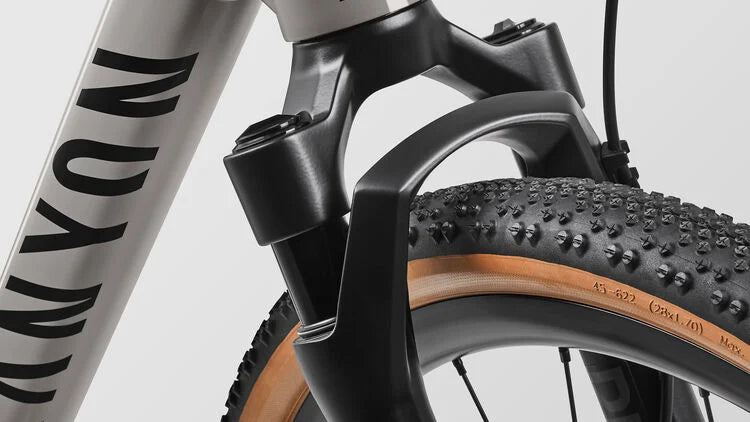

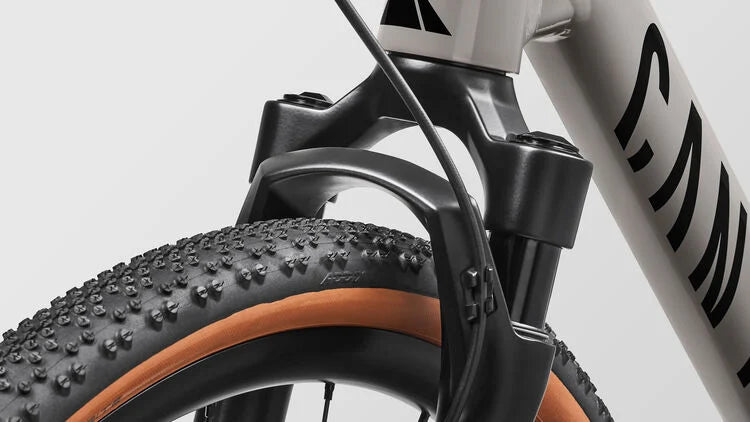

  • Suspension Fork
    • RockShox Rudy 30
    • Axle dimension: 12x100 mm
    • Stanchion Diameter: 30 mm
    • Travel: 30 mm
    • Fork steer tube diameter: 1 1/4"
    • Tyre clearance: 50 mm
    • Weight: 5.07 lbs

Drivetrain

  • Rear Derailleur
    • SRAM Rival 1 SGS
    • Cage length: long
    • Weight: 0.61 lbs
  • Cassette
    • SRAM XG-1150 10-42 11s
    • Number of sprockets: 11
  • Crank
    • SRAM Rival D1 Wide, 40T
    • Number of chainrings: 1
  • Bottom bracket
    • SRAM Pressfit DUB Wide
    • Bottom bracket standard: PF 86,5
    • Weight: 0.14 lbs
  • Chain
    • SRAM PC 1110 11s

Brakes

  • Disc Brake
    • DB SRAM RIV A1 LF FMD 1000 ISJ
  • Shift-/ Brake Lever
    • SBL SRAM RIV A! RR FM 2000 ISJ
    • Weight: 1.03 lbs
  • Brake Rotor
    • SRAM Paceline
    • Size: 160 mm
    • Weight: 0.35 lbs

Wheels

  • Wheel
    • DT Swiss Gravel LN
    • Axle dimension: 12x100 mm
    • Rotor mount: Center Lock
    • Rim height: 25 mm
    • Inner width: 24 mm
    • Rim material: Aluminium
    • Weight: 2.09 lbs
  • Wheel
    • DT Swiss Gravel LN
    • Rotor mount: Center Lock
    • Rim height: 25 mm
    • Weight: 2.09 lbs
  • Tyre
    • TY SCHW G-ONE OVERLAND SKIN 45-622
    • Width: 45 mm
    • Weight: 1.48 lbs
  • Thru Axle
    • Canyon GP0235-01
    • Axle dimension: 12x142 mm

Cockpit

  • Stem
    • Canyon ST0035
    • A lightweight and durable aluminium stem for use on gravel and road bikes.
    • Fork steer tube diameter: 1 1/4"
    • Clamping diameter: 31,8 mm
  • Handlebar
    • Canyon HB 0050 Ergobar AL
    • Aluminium handlebar with comfortable, ergonomically optimised design.
    • Material: Aluminium
    • Shape: Ergo
    • Reach: 70 mm
    • Drop: 130 mm
  • Handlebar Tape
    • Canyon Ergospeed Gel
    • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
    • Color: black

Seat

  • Saddle
    • Selle Italia Model X
    • Width: 145 mm
    • Gender: Unisex
    • Max. Rider Weight: 100 kg
    • Weight: 0.68 lbs
  • Seatpost
    • Canyon SP0057 VCLS
    • With vibration-absorbing design for top rear-end comfort.
    • Setback: 20 mm
    • Clamp diameter: 27,2 mm
    • Material: Carbon (CF)
    • Weight: 0.58 lbs
  • Seat Clamp
    • Canyon Clamp SL

Accessories

  • Pedals
    • None included
  • Manuals and Accessories
    • Canyon Organza Bag
  • Manuals and Accessories
    • Canyon Assembly Paste
  • Manuals and Accessories
    • Canyon Shock Pump
  • Manuals and Accessories
    • Canyon Shock Pump
  • Manuals and Accessories
    • Canyon Starter Box
  • Manuals and Accessories
    • Canyon Torque Wrench
  • Manuals and Accessories
    • Endurace Quick Start Guide
  • Manuals and Accessories
    • Canyon Quick Start Guide
