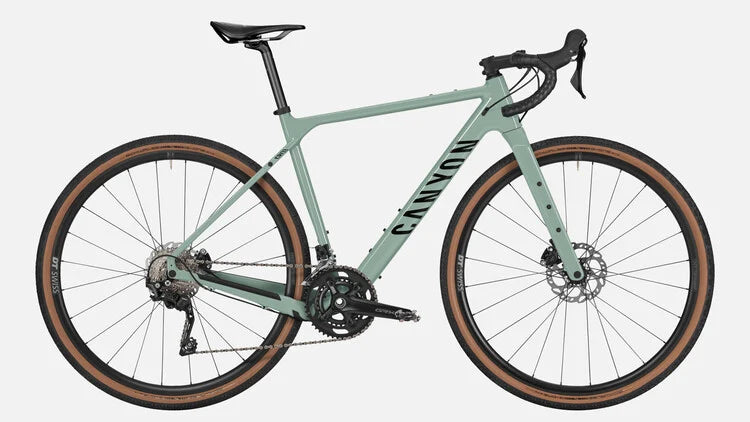

Grizl 6 RAW

Grizl 6 RAW

€161,42 EUR
€1.899,00 EUR €161,42 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Size

Frame

  • Frame
    • Canyon Grizl AL
    • Aluminium frame with Gravel Pro geometry, a range of mounting points, and extended wheelbase for extra off-road stability.
    • Axle dimension: 12x142 mm
    • Tyre clearance: 50 mm
    • Material: Aluminium (AL)
    • Weight: 3.64 lbs

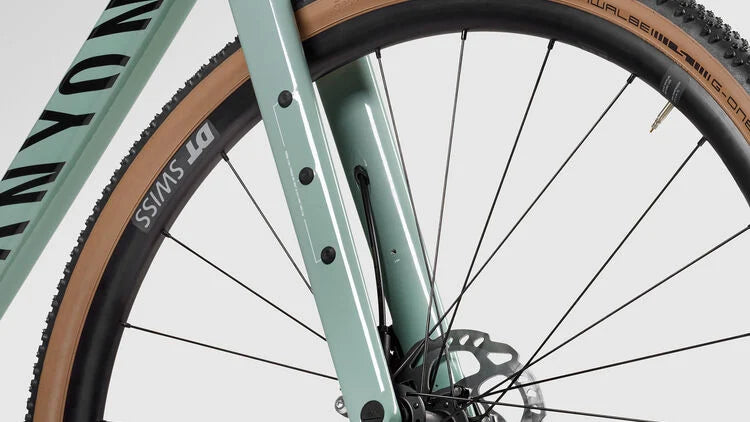

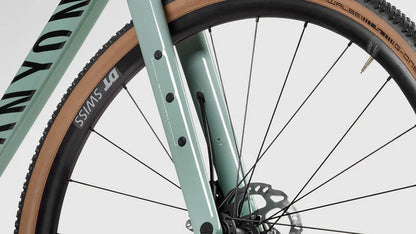

  • Fork
    • Canyon FK0087 CF Disc
    • Light, robust carbon frame with 3-screw mounting points on each side for attaching bottle cages and Anything Cages.
    • Axle dimension: 12x100 mm
    • Fork steer tube diameter: 1 1/4"
    • Tyre clearance: 54 mm
    • Material: Carbon (CF)
    • Weight: 1.10 lbs

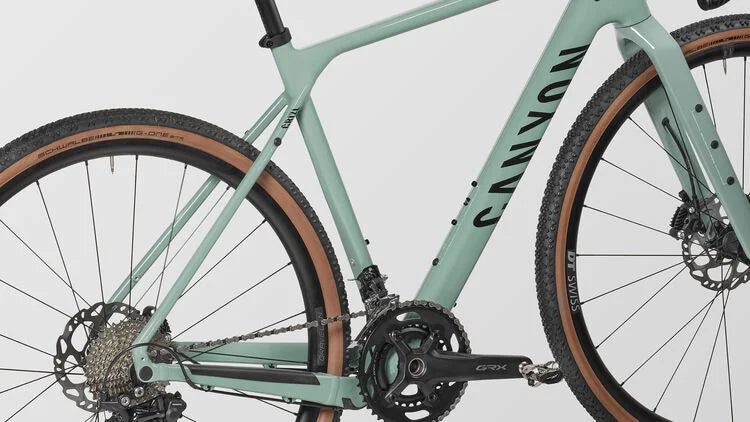

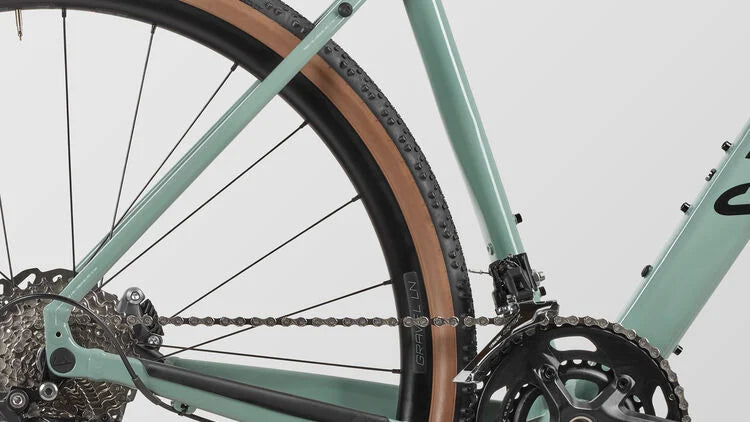

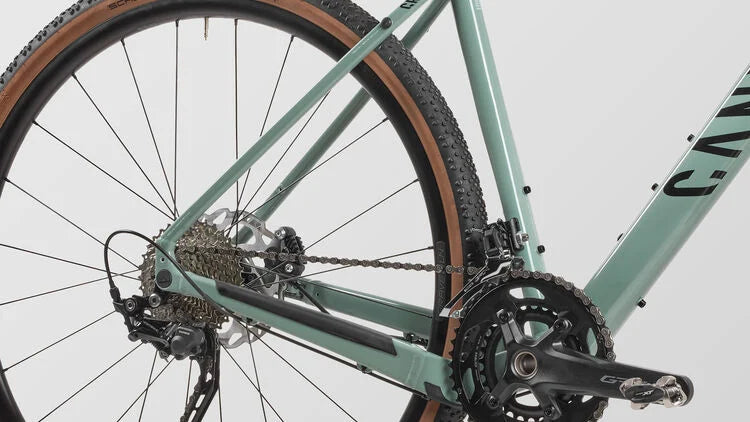

Drivetrain

  • Rear Derailleur
    • Shimano GRX RD-RX400
    • Cage length: long
    • Weight: 0.45 lbs
  • Front Derailleur
    • Shimano GRX FD-RX400-F
    • Weight: 0.22 lbs
  • Cassette
    • Shimano HG500 11-34 10s
    • Number of sprockets: 10
    • Range: 11-34
  • Crank
    • Shimano GRX FC-RX600-10
    • Number of chainrings: 2
  • Bottom bracket
    • Token Ninja Lite BB4124
    • Bottom bracket standard: PF 86,5
    • Weight: 0.19 lbs
  • Chain
    • KMC Connection Link 10s
  • Chain
    • KMC X10-93 10s

Brakes

  • Shift-/ Brake Lever
    • Shimano GRX RX400
    • Weight: 0.68 lbs
  • Shift-/ Brake Lever
    • Shimano GRX RX400
    • Weight: 0.67 lbs
  • Brake Rotor
    • Shimano RT54
    • Size: 160 mm
    • Weight: 0.34 lbs

Wheels

  • Wheel
    • DT Swiss Gravel LN
    • Axle dimension: 12x100 mm
    • Rotor mount: Center Lock
    • Rim height: 25 mm
    • Inner width: 24 mm
    • Rim material: Aluminium
    • Weight: 2.09 lbs
  • Wheel
    • DT Swiss Gravel LN
    • Axle dimension: 12x142 mm
    • Rotor mount: Center Lock
    • Rim height: 25 mm
    • Free hub: Shimano
    • Inner width: 24 mm
    • Rim material: Aluminium
    • Weight: 2.52 lbs
  • Tyre
    • Schwalbe G-One Bite Performance, 45mm
    • Width: 45 mm
    • Weight: 1.21 lbs
  • Thru Axle
    • Canyon GP0197-01
    • Axle dimension: 12x100 mm
  • Thru Axle
    • Canyon GP0235-01
    • Axle dimension: 12x142 mm

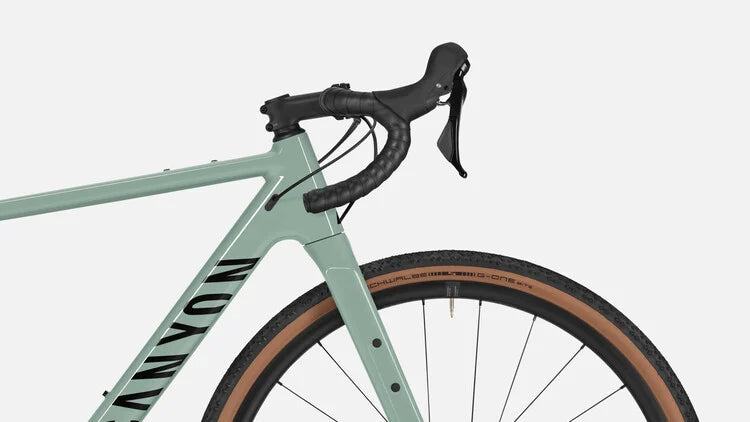

Cockpit

  • Stem
    • Canyon ST0035
    • A lightweight and durable aluminium stem for use on gravel and road bikes.
    • Fork steer tube diameter: 1 1/4"
    • Clamping diameter: 31,8 mm
  • Handlebar
    • Canyon HB0064 Ergo
    • Robust aluminium handlebar with flared drops for enhanced off-road control.
    • Clamping diameter: 31,8 mm
    • Width: 440 mm
  • Handlebar Tape
    • Canyon Ergospeed Gel
    • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
    • Color: black

Seat

  • Saddle
    • Selle Italia Model X
    • Width: 145 mm
    • Gender: Unisex
    • Max. Rider Weight: 100 kg
    • Weight: 0.68 lbs
  • Seatpost
    • Canyon SP0043 VCLS CF
    • Material: Carbon
    • Setback: 20 mm
    • Technology: VCLS
  • Seat Clamp
    • Canyon Clamp SL

Accessories

  • Pedals
    • None included
  • Manuals and Accessories
    • Canyon Organza Bag
  • Manuals and Accessories
    • Canyon Assembly Paste
  • Manuals and Accessories
    • Canyon Torque Wrench
  • Manuals and Accessories
    • Canyon Quick Start Guide
  • Manuals and Accessories
    • Canyon starter box
