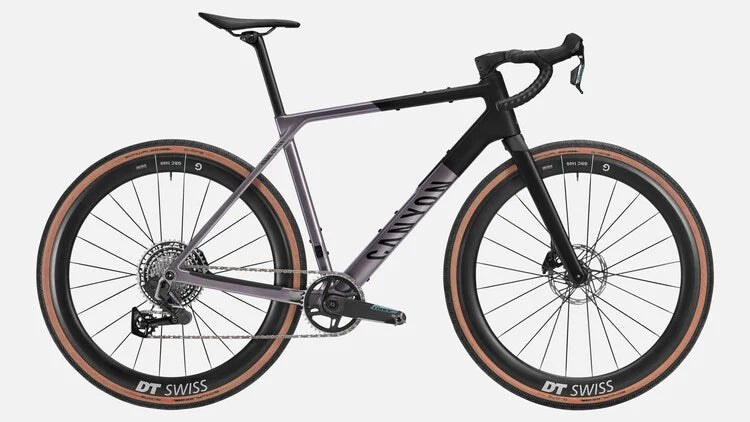

Grail CF SLX 8 AXS RS

Grail CF SLX 8 AXS RS

€518,42 EUR
€6.099,00 EUR €518,42 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Size

Frame

  • Frame
    • Canyon Grail CF SLX

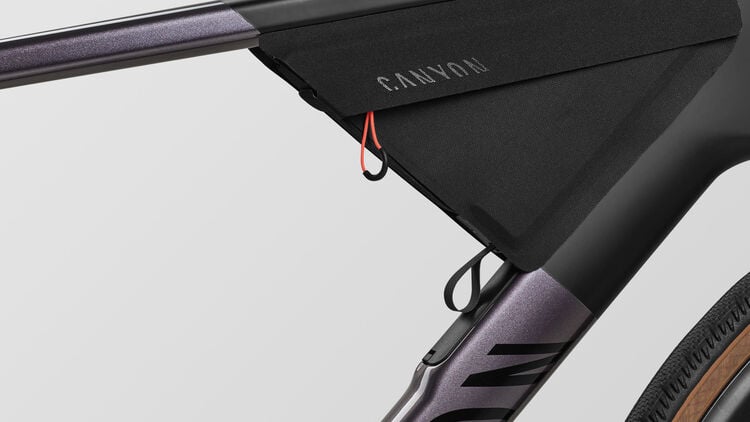

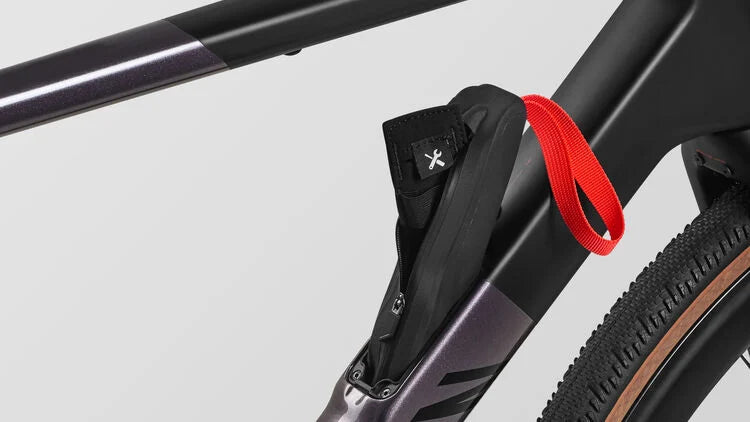

    • Lightweight build of the latest-generation Grail gravel race bike. More capable geometry, aero tube forms, integrated LOAD down tube storage, top tube mounts and strapless bag compatibility.
    • Axle dimension: 12x142 mm
    • Tyre clearance: 42 mm
    • Material: Carbon (CF)
    • Weight: 2.48 lbs
  • Fork
    • Canyon FK0117 CF Disc
    • Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage.
    • Axle dimension: 12x100 mm
    • Fork steer tube diameter: 1 1/4"
    • Tyre clearance: 42 mm
    • Material: Carbon (CF)
    • Weight: 1.04 lbs

Drivetrain

  • Battery
    • SRAM Powerpack
  • Rear Derailleur
    • SRAM Force XPLR Etap AXS E1 46t
  • Cassette
    • SRAM Force XPLR XG-1371 E1 10-46t
    • Number of sprockets: 13
  • Crank
    • SRAM Force XPLR AXS E1 with Quark Powermeter
    • Number of chainrings: 1
  • Bottom bracket
    • SRAM Pressfit DUB Wide
    • Bottom bracket standard: PF 86,5
    • Weight: 0.14 lbs
  • Chain
    • SRAM Force E1

Brakes

  • Shift-/ Brake Lever
    • SRAM Force Etap AXS E1
    • Number of pistons: 2
    • Weight: 0.88 lbs
  • Shift-/ Brake Lever
    • SRAM Force Etap AXS E1
  • Brake Rotor
    • SRAM Paceline
    • Size: 160 mm
    • Weight: 0.35 lbs

Wheels

  • Wheel
    • DT Swiss GRC 1400 Spline
    • Axle dimension: 12x100 mm
    • Rotor mount: Center Lock
    • Rim height: 50 mm
    • Inner width: 24 mm
    • Rim material: Carbon
    • Weight: 1.71 lbs
  • Wheel
    • DT Swiss GRC 1400 50mm
    • Axle dimension: 12x142 mm
    • Rotor mount: Center Lock
    • Rim height: 50 mm
    • Rim material: Carbon
    • Weight: 2.06 lbs
  • Tyre
    • Schwalbe G-One RS Evo
    • Width: 40 mm
    • Weight: 0.98 lbs
  • Thru Axle
    • DT Swiss Front Thru Axle
    • Axle dimension: 12x100 mm
    • Material: Aluminium (AL)
  • Thru Axle
    • Canyon Through Axle
    • Axle dimension: 12x148 mm
    • Material: Aluminium (AL)

Cockpit

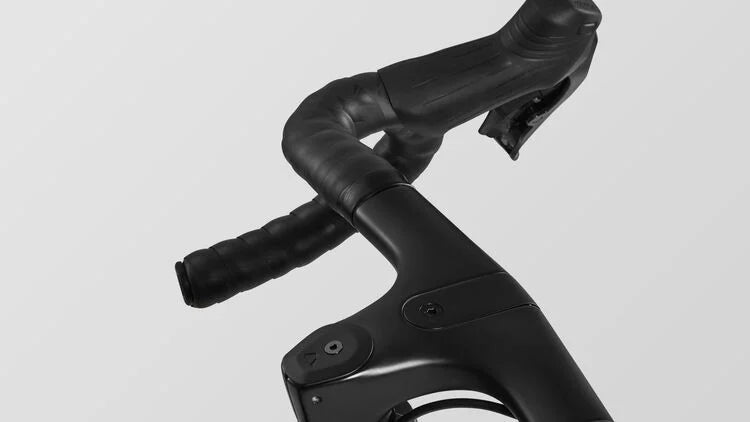

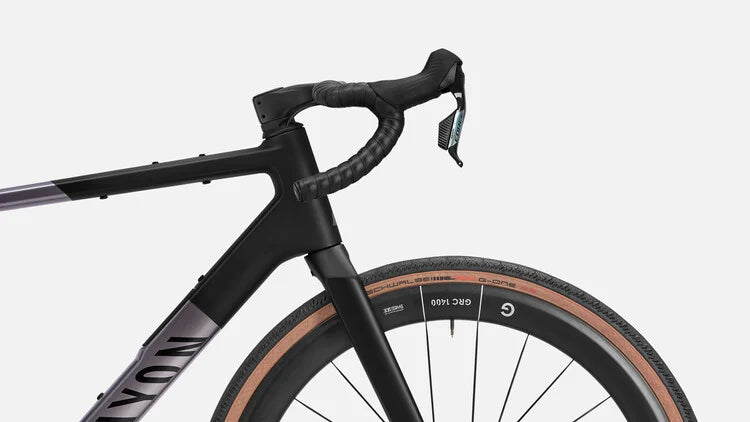

  • Cockpit
    • Canyon Cockpit CP0039

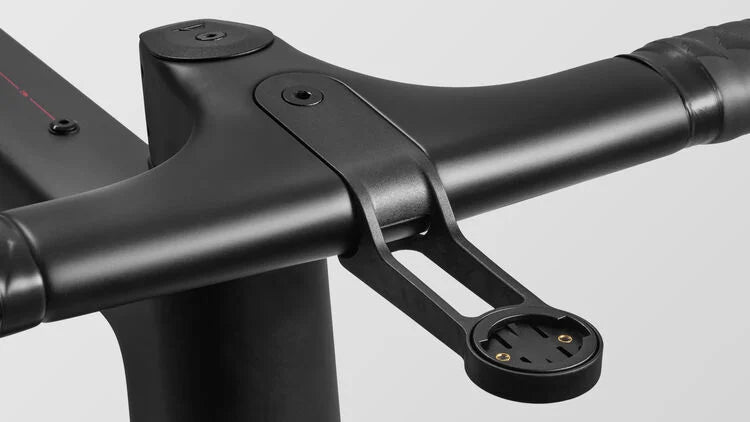

    • One-piece carbon cockpit with specialist gravel ergonomics and design, and versatile Gear Groove interface for mounting a range of accessories. 16掳 flare on at drops, 5掳 backsweep on tops.
    • Material: Carbon (CF)
    • Weight: 0.78 lbs
  • Handlebar Tape
    • Canyon Ergospeed Gel
    • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
    • Color: black

Seat

  • Saddle
    • Fizik Vento Argo X3
    • Gender: Unisex
    • Weight: 0.47 lbs
  • Seatpost
    • Canyon SP0096-01
    • Setback: 10 mm
    • Material: Carbon (CF)
    • Weight: 0.38 lbs
  • Seat Clamp
    • Canyon EP2353-01
  • Seat Clamp
    • Canyon EP2352-01 Saddle Clamp for saddles with 7x7 mm steel rails
  • Seat Clamp
    • Spring

Accessories

  • Workshop
    • Canyon FIX Minitool 6+1
    • The Fix Minitool comes in a super slim design, reduced to a minimal but highly efficient 6+1 function to fit in the LOAD System.
    • Features: Allen keys (2,5 / 3 / 4 / 5 (extension 8) / 6), TX25 (Torx)
    • Material: S2 Steel
    • Dimensions: 55mm x 29mm x 6,9mm
    • Weight: 62g
  • Pedals
    • None included
  • Manuals and Accessories
    • Canyon Organza Bag
  • Manuals and Accessories
    • Canyon Assembly Paste
  • Manuals and Accessories
    • Canyon Torque Wrench
  • Manuals and Accessories
    • Quick Start Guide
  • Manuals and Accessories
    • Canyon starter box
View full details
