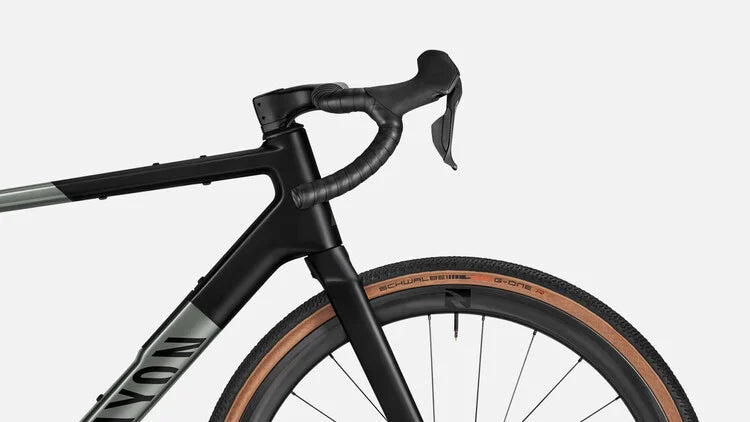

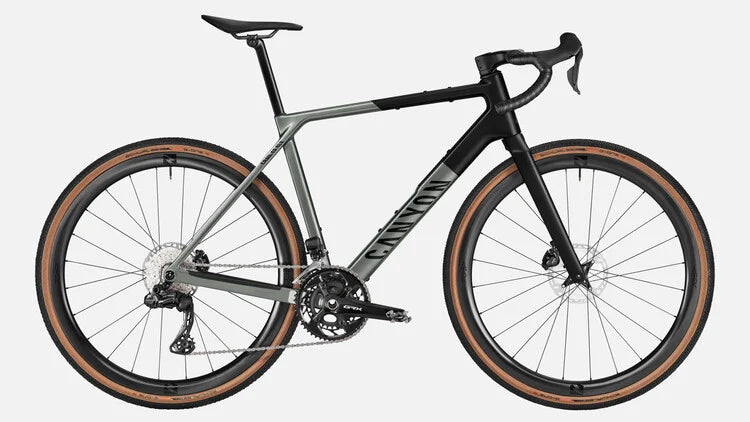

Grail CF SLX 8 ATR

Grail CF SLX 8 ATR

€458,92 EUR
€5.399,00 EUR €458,92 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Size

Frame

  • Frame
    • Canyon Grail CF SLX

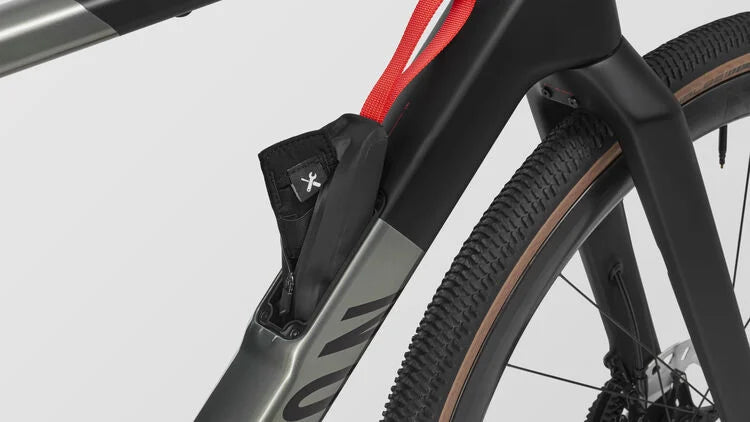

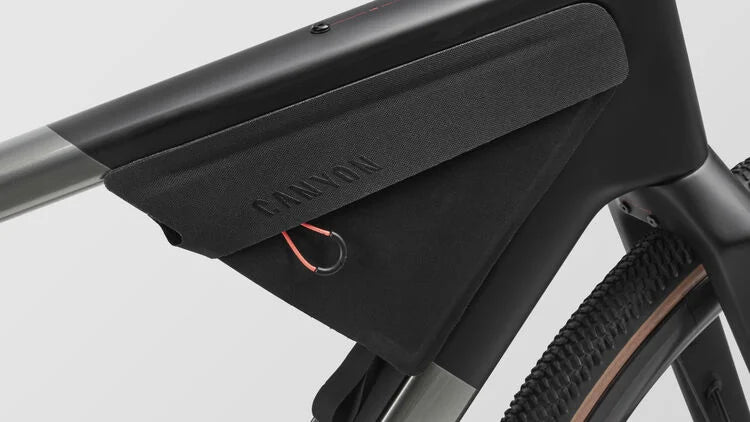

    • Lightweight build of the latest-generation Grail gravel race bike. More capable geometry, aero tube forms, integrated LOAD down tube storage, top tube mounts and strapless bag compatibility.
    • Axle dimension: 12x142 mm
    • Tyre clearance: 42 mm
    • Material: Carbon (CF)
    • Weight: 2.50 lbs
  • Fork
    • Canyon FK0117 CF Disc
    • Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage.
    • Axle dimension: 12x100 mm
    • Fork steer tube diameter: 1 1/4"
    • Tyre clearance: 42 mm
    • Material: Carbon (CF)
    • Weight: 1.04 lbs

Drivetrain

  • Battery
    • Shimano BT-DN300 Di2 Battery
  • Rear Derailleur
    • Shimano GRX Di2 RD-RX825
    • Weight: 0.64 lbs
  • Front Derailleur
    • Shimano GRX Di2 FD-RX825
    • Weight: 0.29 lbs
  • Cassette
    • Shimano Ultegra CS-R8100
    • Number of sprockets: 12
    • Range: 11-34
  • Crank
    • Shimano GRX FC-RX820-2
    • Number of chainrings: 2
  • Bottom bracket
    • Token Ninja Lite BB4124
    • Bottom bracket standard: PF 86,5
    • Weight: 0.19 lbs
  • Chain
    • Shimano CN-M8100 12s

Brakes

  • Shift-/ Brake Lever
    • Shimano GRX Di2 Dual Control ST-RX825
    • Number of pistons: 2
    • Weight: 0.86 lbs
  • Shift-/ Brake Lever
    • Shimano GRX Di2 Dual Control ST-RX825
    • Number of pistons: 2
    • Weight: 0.86 lbs
  • Brake Rotor
    • Shimano Deore XT MT800
    • Size: 160 mm
    • Weight: 0.37 lbs

Wheels

  • Wheel
    • Reynolds ATR700
    • Axle dimension: 12x100 mm
    • Rotor mount: Center Lock
    • Weight: 1.71 lbs
  • Wheel
    • Reynolds ATR700
    • Axle dimension: 12x142 mm
    • Rotor mount: Center Lock
    • Weight: 2.01 lbs
  • Tyre
    • Schwalbe G-One R, 40mm
    • Width: 40 mm
    • Weight: 1.06 lbs
  • Thru Axle
    • DT Swiss Front Thru Axle
    • Axle dimension: 12x100 mm
    • Material: Aluminium (AL)
  • Thru Axle
    • Canyon Through Axle
    • Axle dimension: 12x148 mm
    • Material: Aluminium (AL)

Cockpit

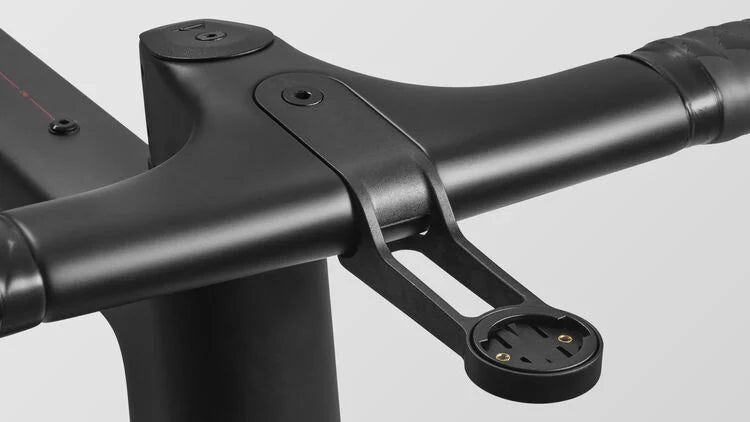

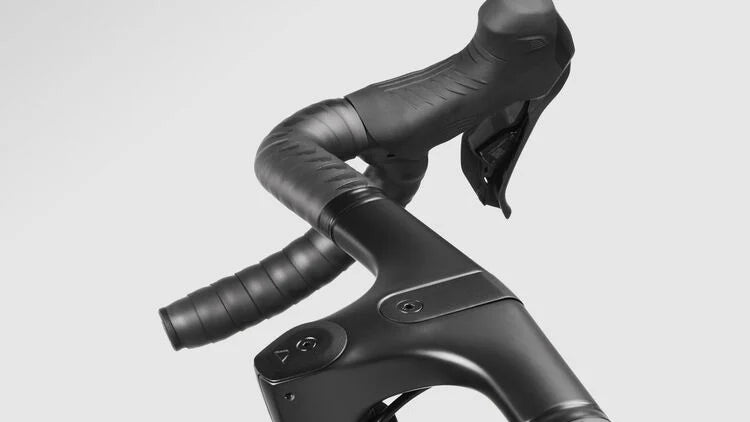

  • Cockpit
    • Canyon Cockpit CP0039
    • One-piece carbon cockpit with specialist gravel ergonomics and design, and versatile Gear Groove interface for mounting a range of accessories. 16掳 flare on at drops, 5掳 backsweep on tops.
    • Material: Carbon (CF)
    • Weight: 0.79 lbs
  • Handlebar Tape
    • Canyon Ergospeed Gel
    • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
    • Color: black

Seat

  • Saddle
    • Fizik Vento Argo X3
    • Gender: Unisex
    • Weight: 0.47 lbs
  • Seatpost
    • Canyon SP0072
    • Material: Carbon (CF)
    • Weight: 0.29 lbs
  • Seat Clamp
    • Canyon GP0223-02 Clamp Set 7x7

Accessories

  • Workshop
    • Canyon FIX Minitool 6+1
    • The Fix Minitool comes in a super slim design, reduced to a minimal but highly efficient 6+1 function to fit in the LOAD System.
    • Features: Allen keys (2,5 / 3 / 4 / 5 (extension 8) / 6), TX25 (Torx)
    • Material: S2 Steel
    • Dimensions: 55mm x 29mm x 6,9mm
    • Weight: 62g
  • Pedals
    • None included
  • Manuals and Accessories
    • Canyon Organza Bag
  • Manuals and Accessories
    • Canyon Assembly Paste
  • Manuals and Accessories
    • Canyon Torque Wrench
  • Manuals and Accessories
    • Quick Start Guide
  • Manuals and Accessories
    • Canyon starter box
View full details
